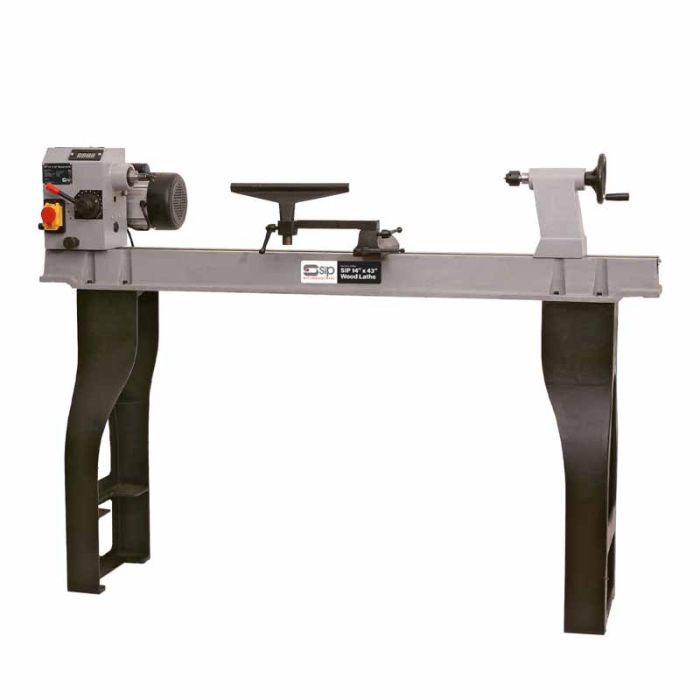

SIP 14 x 43 Inches Swivel Head Wood Lathe - Wood - L45 x W116 x H160 cm
The SIP 14" x 43" Swivel Head Wood Lathe is ideal for those seeking a robust, adaptable lathe with heavy-duty stability. This crucial woodworking machine tools accurately shapes, turns, drills and sand workpieces to the desired specification.
For added functionality, the headstock swivels 360° with four locking positions to allow outboard turning of larger wood materials, whilst heavy-duty cast iron legs maximise stability. The lathe bed, headstock (MT1) and tailstock (MT2) are also manufactured from heavy-duty cast iron. A hollow tailstock is fitted to allow long hole boring.
Delivery Information
Details
Supplied with tool rest holder, 6" faceplate, drive and tailstock centres, 2x tool rests and bowl turning rest holder.
Key Features:
- 3/4" x 16TPI spindle thread size
- 350mm max. turning diameter (1100mm between centres)
- Heavy-duty cast iron legs
- Heavy-duty cast iron lathe bed
- Digital speedometer display up to 2000rpm
- 10 setting easy-change speed handle
Applications & uses | Perfect for turning furniture legs, staircase spindles and bespoke woodwork items. Accurately turns, shapes, drills and sands workpieces to the desired specification. Suitable for soft and hard woods.
Features:
- SIP 2-Year Standard Silver Warranty
- 3/4" x 16TPI spindle thread size | Allows the use of various turning attachments.
- 350mm max. turning diameter (1100mm between centres) | Enables a variety of woodwork projects and jobs.
- 360° swivel headstock with four lock positions | Allows for outboard turning of larger wood materials.
- Heavy-duty cast iron legs | Prevents flex and movement of the bed and enhances stability when outboard turning.
- Heavy-duty cast iron lathe bed | Ensures greater turning stability and accuracy.
- Cast iron MT1 headstock and MT2 tailstock | For an assured hold to the workpiece when turning.
- Digital speedometer display | Provides accurate readout of headstock spindle speed.
- Fitted with hollow tailstock for long hole boring | Offers added versatility for professional applications.
Dimensions:
- Prod Height (mm): 1600
- Prod Width (mm): 1160
- Prod Depth (mm): 450
- Net Weight (Kg): 130.00
Technical Data:
- Input Supply: 230v (13A)
- Motor Power: 750w (1hp)
- Speed Range: 500rpm - 2000rpm
- Distance Between Centres: 1100mm (43")
- Turning Capacity: 350mm (14")
- Spindle Through Hole: 10mm (Drive) / 10mm (Tailstock)
- Drive Spur Size: 1 Morse Taper
- Tailstock Rotating Centre Size: 2 Morse Taper
- Noise Level: 68dB(A)
