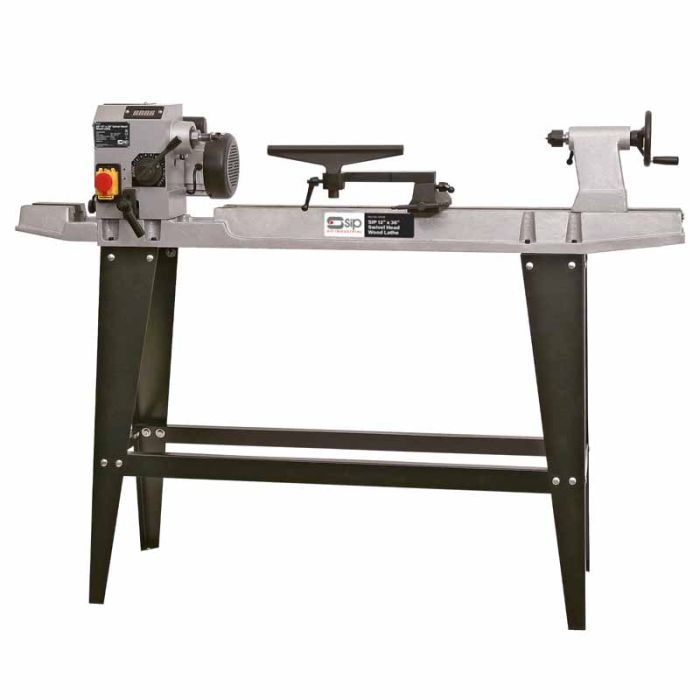

SIP 12 x 36 Inches Swivel Head Wood Lathe - Wood - L47.5 x W151 x H112 cm
The SIP 12" x 36" Swivel Head Wood Lathe is an ideal solution for those seeking a robust, adaptable lathe to accurately shape, turn, drill and sand pieces to the desired specification.
For added functionality, the headstock swivel 360° with four locking positiong to allow outboard turning of larger wood materials. The lathe bed, headstock (MT1) and tailstock (MT2) are manufactured from heavy-duty cast iron and mounted on pressed steel legs with cross braces. A hollow tailstock is also fitted for long hole boring.
Supplied with tool rest holder, 6" faceplate, drive and tailstock centres, 2x tool rests and bowl turning rest holder.
Key Features:
- 3/4" x 16TPI spindle thread size
- 300mm max. turning diameter (900mm between centres)
- Pressed steel legs with cross braces
- Heavy-duty cast iron lathe bed
- Digital speedometer display up to 2000rpm
- 10 setting easy-change speed handle
The SIP 12" x 36" Swivel Head Wood Lathe is an ideal solution for those seeking a robust and adaptable lathe for woodturning. Crucial to a functioning workshop, this machine tool allows a woodturner to accurately shape, turn, drill and sand workpieces to the desired specification.
For added functionality, a 360° swivel headstock with four locking positions is fitted to allow outboard turning of larger wood materials.
Delivery Information
Details
The headstock has an MT1 taper and tailstock an MT2 taper alongside a variable speed motor which runs between 500rpm and 2000rpm. The easy-change speed handle has 10 settings and a digital readout speed display for greater turning control.
Supplied with tool rest holder, 6" faceplate, drive and tailstock centres, 2x tool rests and bowl turning rest holder.
Applications & uses | Perfect for turning furniture legs, staircase spindles and bespoke woodwork items. Accurately turns, shapes, drills and sands workpieces to the desired specification. Suitable for soft and hard woods.
Features:
- SIP 2-Year Standard Silver Warranty
- 3/4" x 16TPI spindle thread size | Allows the use of various turning attachments.
- 300mm max. turning diameter (900mm between centres) | Enables a variety of woodwork projects and jobs.
- 360° swivel headstock with four lock positions | Allows for outboard turning of larger wood materials.
- Heavy-duty cast iron lathe bed and pressed steel legs | Ensures greater turning stability and accuracy.
- Cast iron MT1 headstock and MT2 tailstock | For an assured hold to the workpiece when turning.
- Digital speedometer display | Provides accurate readout of headstock spindle speed.
- Fitted with hollow tailstock for long hole boring | Offers added versatility for professional applications.
Dimensions:
- Prod Height (mm): 1380
- Prod Width (mm): 1120
- Prod Depth (mm): 475
- Net Weight (Kg): 77.00
Technical Data:
- Input Supply: 230v (13A)
- Motor Power: 550w (0.75hp)
- Speed Range: 500rpm - 2000rpm
- Distance Between Centres: 900mm (36")
- Turning Capacity: 310mm (12")
- Spindle Through Hole: 10mm (Drive) / 10mm (Tailstock)
- Drive Spur Size: 1 Morse Taper
- Tailstock Rotating Centre Size: 2 Morse Taper
- Noise Level: 68dB(A)
